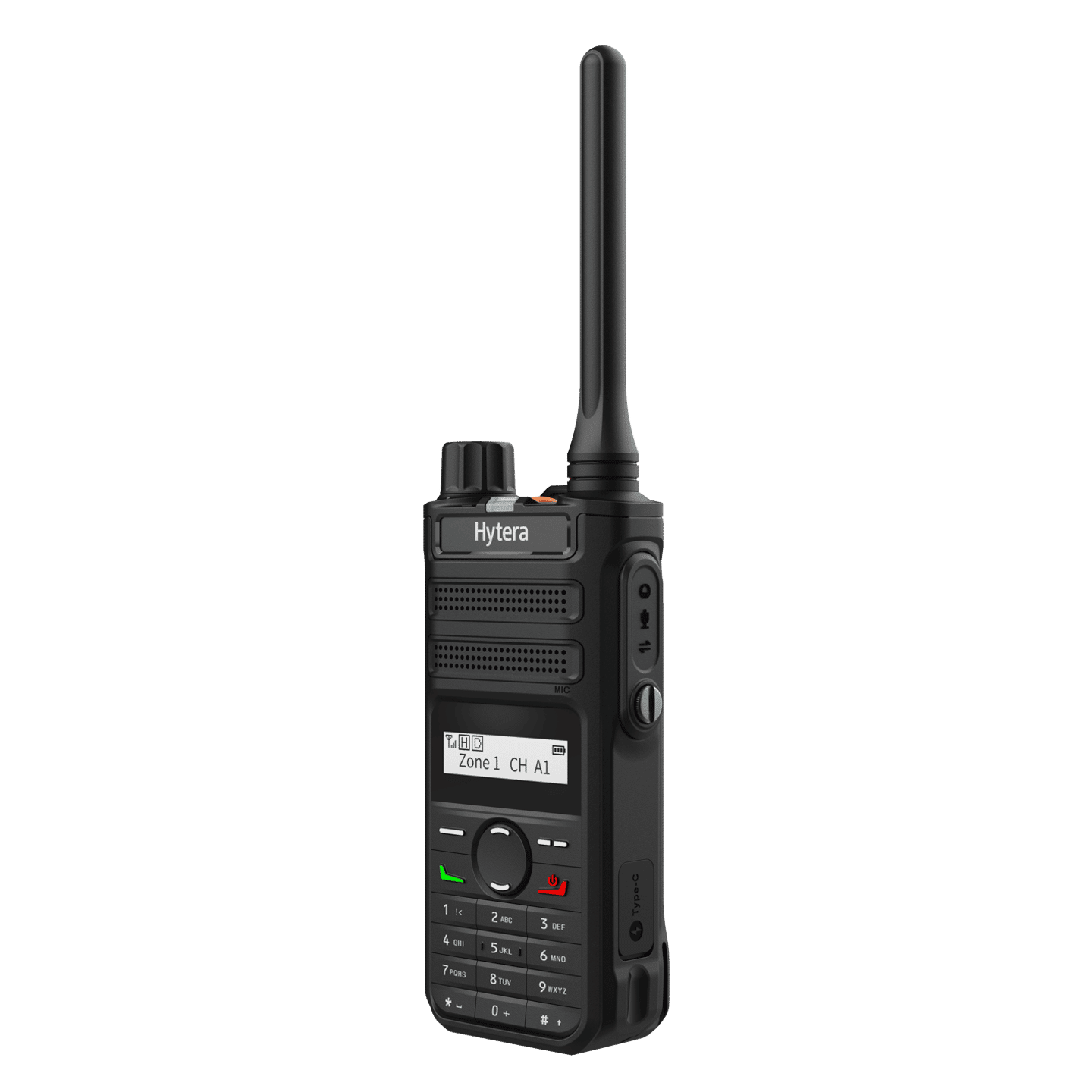

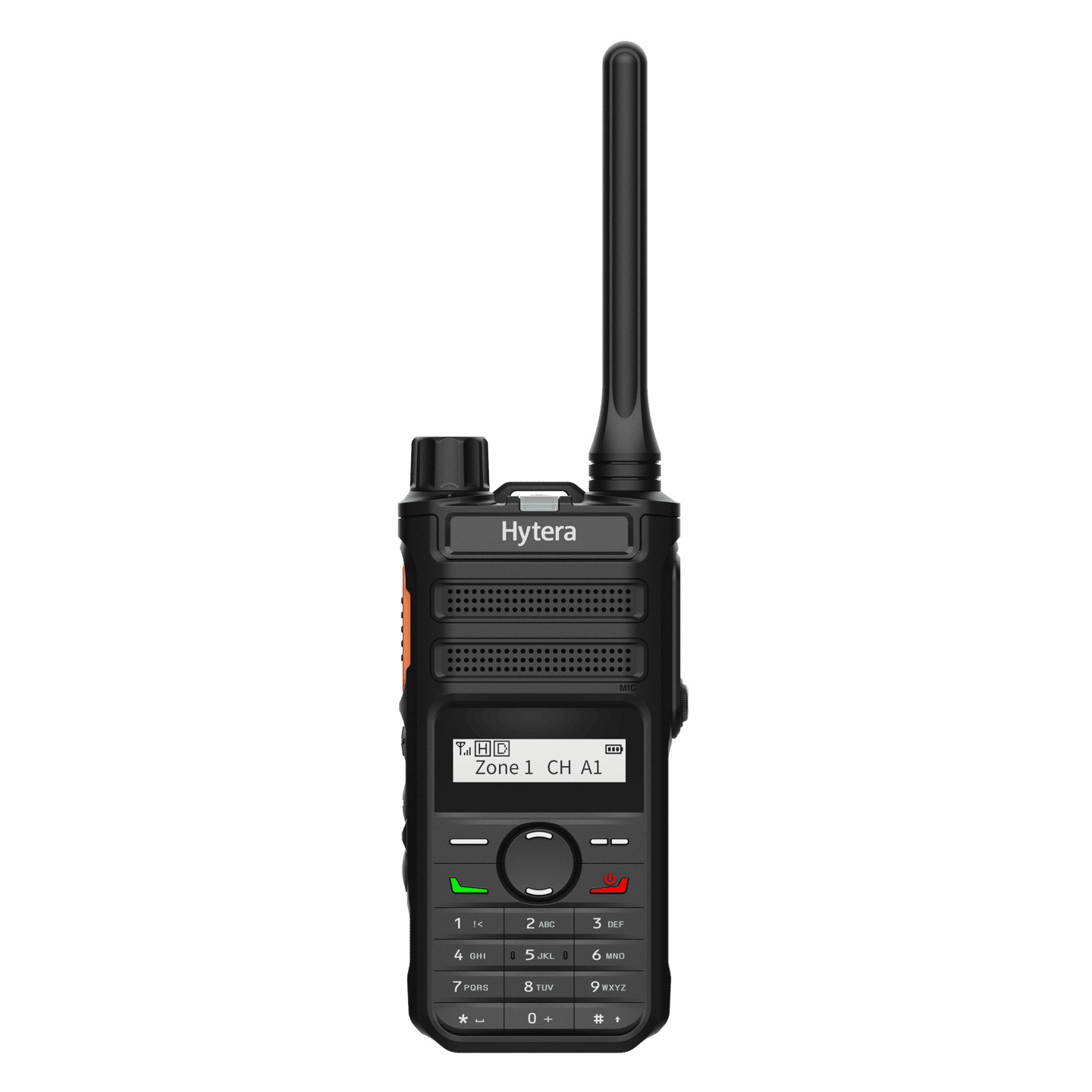

AP582 Two-Way Business Analog Radio

Handheld | Analog

Highlights

diagram indicating highlights of AP582 Two-Way Business Analog Radio

PUSH TO TALK BUTTON

INDEPENDENT VOLUME KEYS

ANTI-SLIP AND DURABLE TEXTURE

ACCESSORY/DATA PORT

1.4 Inch DISPLAY

CHANNEL SELECTOR KNOB

ANTENNA

LED INDICATOR

USB TYPE-C PORT

Functions

Created with Sketch. SCRAMBLER

Protects your voice communications against casual listeners. Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice

Created with Sketch. SCAN

Allows you to listen to activities on other channels, keeping track of your colleagues

ic_insert_link Created with Sketch. TALK AROUND

Allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater

Created with Sketch. HOWLING SUPPRESSION

With the howling suppression algorithm, no feedback howling occurs between two radios within 3 meters.

Created with Sketch. PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, communication slots can be shared to improve capacity usage with transmissions either direct to devices or to repeater.

Created with Sketch. FAST CHARGING

With the 10 W standard power adapter, the AP58X can be charged from 0% to 100% in only 1.8 hours, and has a USB Type-C port for charging.

Created with Sketch. ENCRYPTION

Enables the radio to encrypt the voice and data with the encryption key to prevent eavesdropping.

Created with Sketch. VOX

Allows you to speak without pressing and holding the PTT key, freeing your hands.

Created with Sketch. TIME-OUT TIMER (TOT)

This feature allows the radio to automatically stop transmission when the preset transmission period expires, improving channel utilization efficiency.

Created with Sketch. THINNER AND LIGHTER

Optimized body construction of 230g in weight, 29.5 mm in depth

Accessories for AP582 Two-Way Business Analog Radio

Included as standard with AP582 Two-Way Business Analog Radio Included as standard with AP582 Two-Way Business Analog Radio

Technical Specifications

General

Frequency Range
400-470MHz 136-174MHz
Channel Capacity
128
Zone Capacity
8
Channels Per Zone
16
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
7.4V (rated)
Battery
1500mAh 7.4V 2000mAh 7.4V (Optional)
Battery Life (5/5/90 Duty Cycle, High TX Power)
12h (1500mAh) 16h (2000mAh)
Dimensions (H x W x D)
115*55*29.5mm
Weight (with antenna & battery)
230g±5g
Display
1.44 inch LCD
BT (optional)
BT 5.0 BLE+EDR

Environmental

Operating Temperature
-30℃ to +60℃
Storage Temperature
-40℃ to +85℃
ESD
IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
IP Rating
IEC60529-IP54 (IP67 optional)
Humidity
MIL-STD-810 G
Shock and Vibration
MIL-STD-810 G

Receiver

Sensitivity
0.18μV (12dB SINAD)
Hum and Noise
[email protected]; [email protected]; [email protected]
Rated Audio Power Output
1W
Rated Audio Distortion
≤3%
Audio Response
+1~-3dB

Transmitter

RF Power Output
VHF: 5W / 1W UHF: 4W / 1W
FM Modulation
[email protected]; [email protected]; [email protected]
Modulation Limiting
±[email protected]; ±[email protected]; ±[email protected]
Conducted/Radiated Emission
-36dBm<1GHz; -30dBm>1GHz
